Introduction
Ice-cube relays are one of the most widely used components in industrial automation, control panels, HVAC systems, and machinery wiring. Known for their compact cube-shaped transparent housing, these relays allow engineers and technicians to visually inspect internal switching behavior while providing flexible multi-pole control capabilities.
This guide covers everything from basic concepts to real-world wiring, procurement decisions, and troubleshooting scenarios. It is designed for engineers, panel builders, electricians, and maintenance technicians who need practical, application-focused knowledge.
Ice-cube Relay Fundamentals
Why is it called an “ice-cube” relay?
The term “ice-cube relay” comes from its transparent, square polycarbonate housing that resembles a small ice cube. This design allows visual inspection of internal contacts and mechanical indicators without opening the relay.
What is an ice-cube relay used for?
Ice-cube relays are primarily used for:
- Signal switching in control systems
- PLC output interfacing
- Load isolation between circuits
- Low-to-medium power switching applications
They are widely used in industrial automation and electrical control panels.
Form C contact explanation
A Form C contact is a changeover contact consisting of:
- Common (COM)
- Normally Closed (NC)
- Normally Open (NO)
The relay switches COM between NC and NO depending on coil energization.
Coil operation basics
The relay coil generates a magnetic field when energized, pulling an internal armature that switches the contacts. Coil ratings vary depending on AC or DC design and must match the control voltage.
Relay Construction & Electrical Behavior
AC vs DC coil operation
AC and DC coils are not interchangeable in most cases:
- AC coils are designed for alternating current and use impedance to limit current
- DC coils require stable current and may overheat if used incorrectly
Using the wrong type can cause failure, overheating, or unstable switching.
Dry contact definition
Ice-cube relay contacts are typically dry contacts, meaning:
- No electrical connection between coil and contacts
- Full isolation between control and load circuits
- External voltage is supplied by the user
This is essential for industrial control safety.
Mechanical vs electrical lifespan
- Mechanical life: high number of operations without load
- Electrical life: significantly lower due to arcing under load
Electrical lifespan depends heavily on load type (resistive vs inductive).
Contact bounce
Contact bounce occurs when mechanical contacts briefly open and close multiple times during switching (2–5 ms).
Impact:
- False triggering in high-speed PLC inputs
- Incorrect pulse counting
Mitigation:
- Software filtering
- Hardware debounce circuits
- Solid-state alternatives for high-speed signals
Selection & Procurement Guide
Relay and socket separation
Ice-cube relays are typically sold separately from sockets to allow flexibility in:
- Mounting style
- Wiring method
- Panel design standards

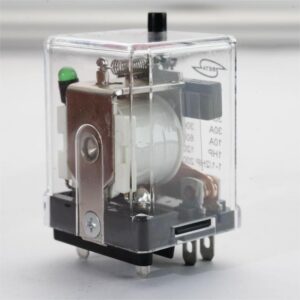

LED indicator importance
LED indicators provide instant visual confirmation of coil activation and significantly reduce troubleshooting time in industrial environments.
Manual test button function
A manual test or latching lever allows:
- Manual actuation without coil power
- System testing during maintenance
- Independent verification of output circuits
Contact material selection
- Silver Nickel (AgNi): general-purpose switching and higher loads
- Gold-flashed contacts: low-voltage, low-current signal applications
Gold improves reliability in micro-current circuits.

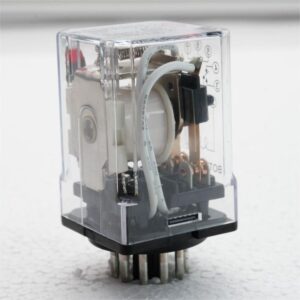

Pin types: blade vs octal
- Blade type: compact, modern industrial standard
- Octal type: traditional, mechanically robust
Compatibility depends on socket design.
Interchangeability between brands
Even if pin layouts match, verify:
- Coil voltage
- Contact rating
- Mechanical dimensions
- Certifications
Standard footprints exist, but full interchangeability is not guaranteed.
Hold-down clips usage
Recommended in:
- High vibration environments
- Industrial machinery
- Mobile systems
They prevent relay loosening over time.
Surge suppression (diode / varistor)
Some relays include built-in suppression components to reduce voltage spikes generated when the coil is de-energized, protecting PLC outputs and control electronics.
Inductive vs resistive ratings
Relay ratings depend on load type:
- Resistive loads: stable current (heaters, lamps)
- Inductive loads: motors, solenoids (high inrush current)
Inductive ratings are always lower due to arcing effects.
Certifications (UL / CE / CSA)
Certification requirements vary:
- UL / cURus: North American industrial panels
- CE: European compliance
- RoHS: environmental compliance
Always verify based on application requirements.
Wiring, Operation & Field Applications
Relay self-holding (latching circuit)
A self-holding circuit uses a NO auxiliary contact to maintain coil energization after the start button is released.
Basic structure:
- START button energizes coil
- NO contact seals circuit
- STOP button breaks circuit
Common in motor control systems.
Why relay contacts weld
Contact welding is caused by:
- Overcurrent conditions
- High inrush inductive loads
- Lack of arc suppression
- Excessive switching frequency
Welded relays require replacement.
Mixed voltage switching
Multi-pole relays can switch different voltages across isolated poles (e.g., 120VAC + 24VDC), but must comply with:
- Electrical clearance rules
- Safety standards
- Local wiring codes
Terminal numbering confusion
Relay terminal layouts vary by manufacturer. Most follow A1/A2 or standardized coil marking, but always refer to the printed schematic on the relay body.
LED ON but output not working
This means:
- Coil is energized
- Contacts may still be open or damaged
Check:
- Load supply voltage
- Wiring errors
- Burned contacts
- Socket connection issues
DC coil polarity
Polarity matters when:
- LED indicator is present
- Suppression diode is integrated
Incorrect wiring may cause malfunction or damage.
Contact testing procedure
Proper testing involves:
- Removing relay from socket
- Applying rated coil voltage
- Listening for mechanical click
- Checking COM–NO continuity with multimeter
This confirms coil and contact functionality.
Troubleshooting & Real-World Issues
Relay chattering during startup
Caused by voltage dips from motor inrush current or undersized power supply. Even short drops can cause coil dropout.
Inconsistent contact resistance
Caused by:
- Oxidation
- Carbon buildup
- Mechanical wear
For precision signals, solid-state relays are preferred.
High-speed counter issues
Relay contact bounce may generate multiple pulses, affecting PLC counters. Debounce filtering is required.
LED on but no output
LED only confirms coil activation, not load switching. Always verify contact path separately.
Conclusion
Ice-cube relays remain a fundamental building block in industrial control systems due to their simplicity, reliability, and flexibility. Understanding their electrical behavior, correct selection criteria, and real-world limitations is essential for designing stable automation systems.
From coil selection and contact ratings to wiring practices and troubleshooting, proper application ensures long service life and safe operation across industrial environments.
